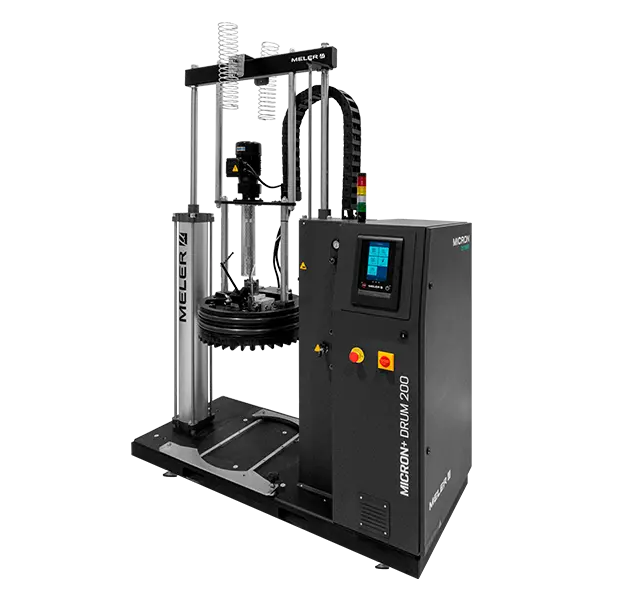

STATE-OF-THE-ART TECHNOLOGY

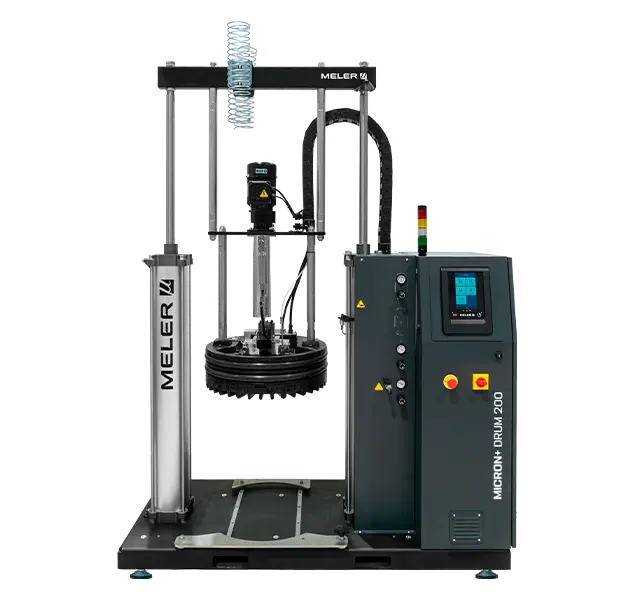

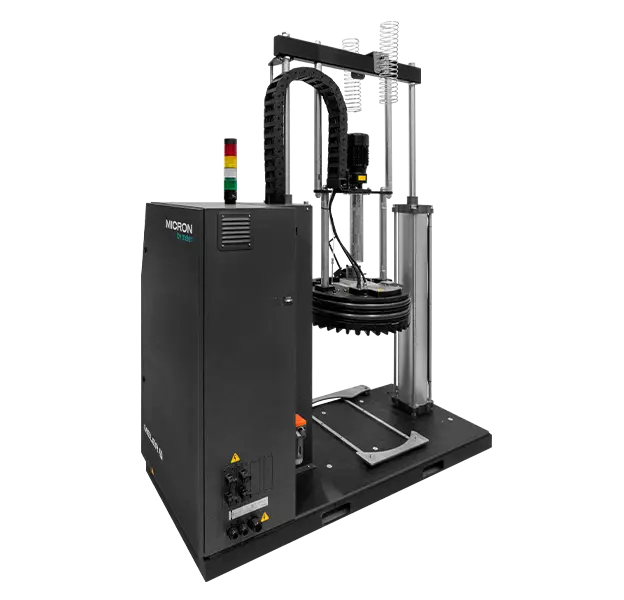

MICRON+ DRUM 200 drum unloader designed for unloading hot melt adhesive drums of 200 L /55 gal, ensuring homogeneous melting, effective sealing, and a constant adhesive supply in demanding industrial applications.
For drum removal, the system offers an automatic ejection option via air injection, preventing incorrect handling by the operator and ensuring a safe and efficient process.
Its modular design makes it a highly configurable solution, capable of adapting precisely to the specific needs of each customer.

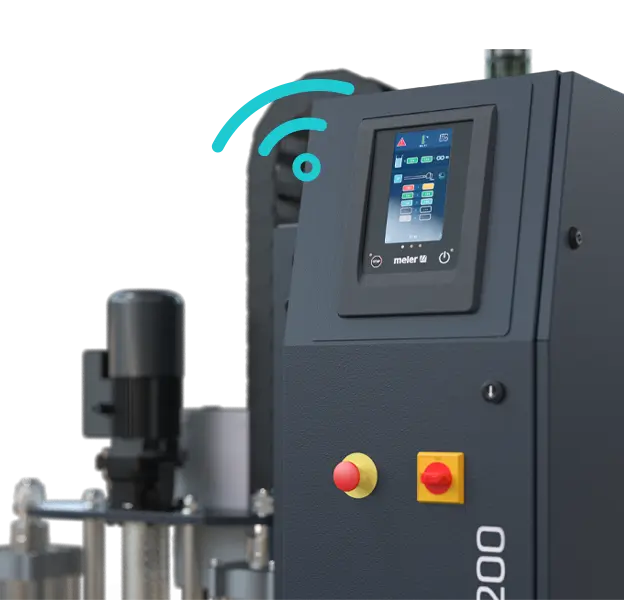

PRECISE APPLICATION CONTROL
The integrates adhesive weight control system (ADA) provides precise flow regulation by automatically adjusting the pump speed according to the required amount.
All control functions are integrated into Meler’s electronic platform, ensuring process stability and excellent repeatability in adhesive application.

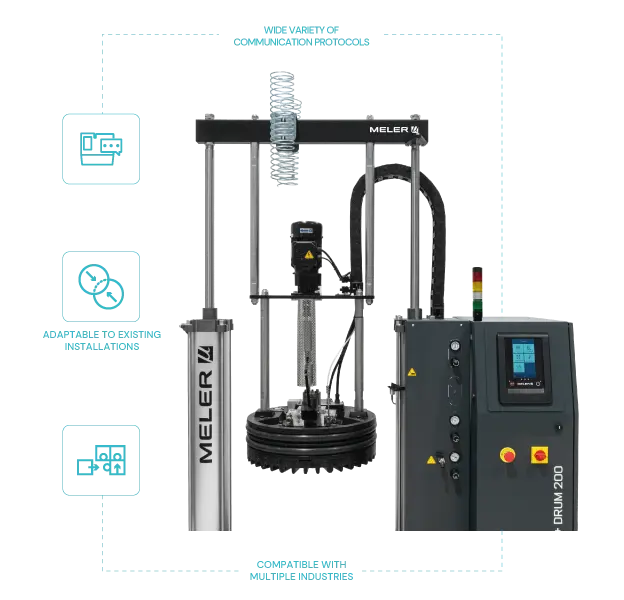

INTEGRATION WITH THE MAIN MACHINE
MICRON+ DRUM 200 integrates easily with any main machine thanks to the various communication protocols offered by the melter, facilitating its incorporation into existing production lines.

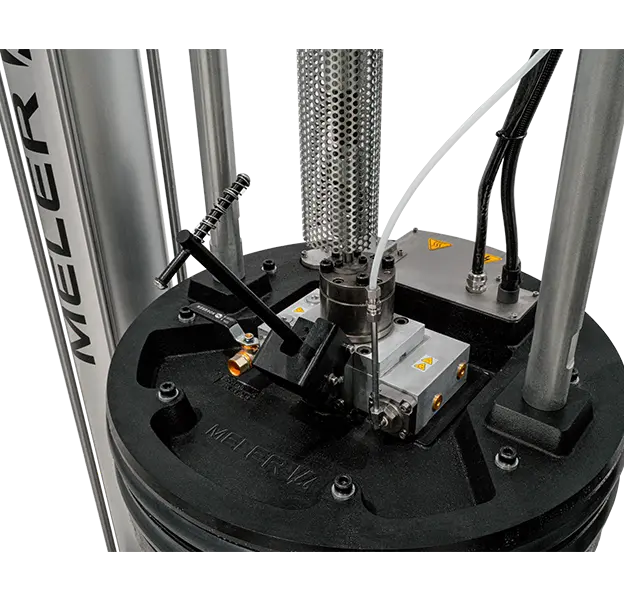

PROCESS OPTIMIZATION. ZERO DOWNTIME
MICRON+ DRUM 200 includes the Tandem option as standard, allowing two Drum 200 melters to operate in parallel to aoid machine downtime during drum changes.
Communication between both follower plates is simple and fast thanks to a pre-installed cable harness with connector.
Adaptability
MICRON+ DRUM 200 features a flexible configuration that adapts to any environment or production process. Available options include:
- Different pump sizes
- Different input voltages
- Measurement units adaptable to different geographic areas
- Fixed or variable speed

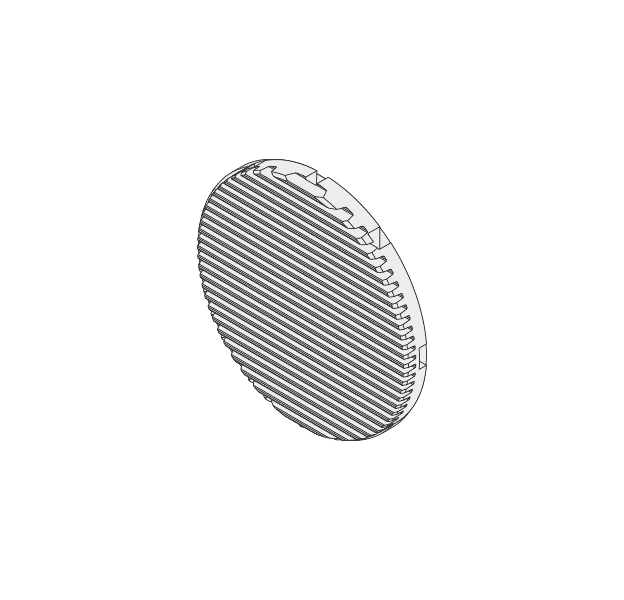

- Different melting plates depending on the type of adhesive and the required melting ratio
BENEFITS THAT MAKE THE DIFFERENCE
Maximum energy efficiency
Configurable and adaptable design
Maximum accesibility
Easy installation and use
Full connectivity
Enables the use of special adhesives (PUR, PSA, EVA)
PERFORMANCE THAT REDEFINES PRODUCTIVITY
Connect with the things that really matter.
TECHNICAL SPECIFICATIONS
- DRUM DIMENSIONS
Ø 571 mm / Ø 22.5 in (inside) - DISC OPTIONS
Smooth, Radial fins and Parallel fins - MELTING CAPACITY
Up to 180 kg/h (397 lb/h) - PUMPING CAPACITY
- Single Pump: 1, 2.5, 4, 8, 8, 15, 15, 20 and 30 cc/rev
- Double Pump (per output): 2×0.93, 2×1.86, 2×3.71 and 2×4.8 cc/rev
- NUMBER OF PUMPS
Up to 2 single pumps 15 cc/rev - NUMBER OF ELECTRICAL OUTPUTS
- Up to 10 on European connection
- Up to 6 on American connection
- PUMP SPEED
10-80 rpm (0-100 rpm range) - BYPASS VALVE
Mechanical or Pneumatic - MAXIMUM INSTALLED POWER
40 kw - DIMENSIONS (LxWxH)
- 1655 x 700 x 1760 mm / 65 x 28 x 69 in (Bottom plate)
- 1655 x 700 x 2780 mm / 65 x 28 x 109 in (Top plate)
- WEIGHT
780 kg / 1,720 lb - ELECTRICAL REQUIREMENTS
- 3L/N/PE ~ 400V 50/60Hz
- 3L/PE ~ 480V 50/60Hz
Features
- Versatility
- Usability
- Melting capacity
- Adhesive treatment
- Energy Efficiency
- Accessibility
Industries
Hot melt systems for graphic arts
Application of high-speed adhesives in bookbinding and paper converting
