Accuracy and repeatability

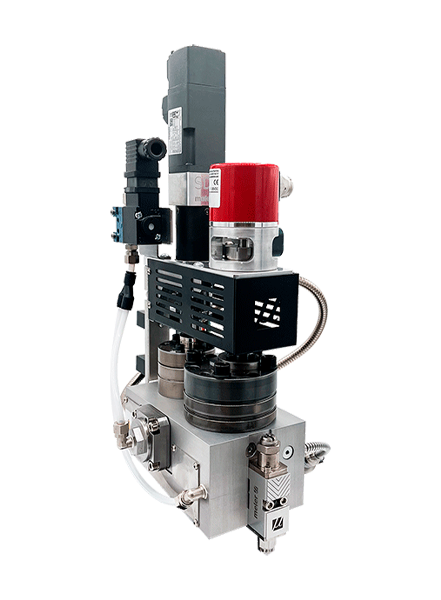

The SDA has a gear pump inserted in the applicator body itself, which guarantees maximum precision when applying the adhesive. It is the lightest applicator on the market in its segment.
Compatible with high and low viscosity adhesives (EVA/PUR/POR/FOAM).
Smart performance
Reproduces complex application schemes (set point) by making changes of less than 1”.
SDA Flow
(Smart Function)
With the SMART FUNCTION, each application target weight is monitored and, if necessary according to the tolerance band, automatically adjusts the pump rpm.
Full traceability
Traceability by application or component.Each of its actions is reported in real time to the control system for the main machine.
BENEFITS THAT MAKE THE DIFFERENCE
Robot integration
Process automation
Resistent to vescosity changes
Accuracy of adhesive flow
Configurable on customer's request
Perfect for routing
Wide variety of communication protocols
Full traceability
PERFORMANCE THAT REDEFINES PRODUCTIVITY
- Designed for applications demanding quick change of adhesive flow, accuracy and repeatability.
- Particularly suitable for bead or swirl applications in robotic manufacturing lines.
- Integrated pump with pressure and/or flow meter control
TECHNICAL SPECIFICATIONS
- APPROXIMATE WEIGHT
- SDA: 5 kg (11 lb)
- SDA Flow: 9 kg (20 lb)
- LINE SPEED
0 – 600mm/s (23.6 in/s) - FLOW RATE *
24 L/h (6.3 gal/h) max - MAXIMAL HYDRAULIC PRESSURE
80 bar (1160 psi) - EQUIPMENT SUPPLY PRESSURE
10 – 30 bar (145 – 435 psi) - MAXIMUM AIR PRESSURE
6 bar; dry, clean, degreased - APPLICATOR TEMPERATURE CONTROL
Pt100, Ni120 - MAXIMUM WORKING TEMPERATURE
Up to 200 °C (392 °F) - ENVIRONMENTAL CONDITIONS
- Ambient temperature 10 – 30°C (50 – 86 ºF)
- Relative humidity: 90% RH max. (at 30°C / 86 ºF)
- ELECTRIC CURRENT
230 VAC, 50/60 Hz (from melter unit) - (*)
Depending on the type of adhesive
- ELECTRIC CURRENT
- APPROXIMATE WEIGHT
Characteristics
- Versatility
- Usability
- Speed of response
- Accessibility
Configurations of these applicators
Robotic applications specific to the automotive sector or other industries.
There’s a bit of magic in all science Supported modules
Ball-closing module with air-operated opening and spring closing. Thanks to its threaded tip, it can be used with different nozzles. Adhesive projection accuracy without deviations.
NDS module
Conical-closing module with air-operated opening and spring closing. Its conical tip creates a self-cleaning effect that prevents nozzle clogging.
NDS.CCD module
Ball-closing module with air-operated opening and spring closing. Uses disc nozzles with different exit holes.
NDS.E module
Conical-closing module with air-operated opening and spring closing. With a special nozzle to improve the precision of the adhesive projection without deviations.
NDS.CCE module
Conical-closing module with air-operated opening and spring closing. With a special nozzle to improve the precision of the adhesive projection without deviations. With adjustment of the opening damper.
NDS.CCE.R module
Module with air-operated opening and closing. Negative sealing for optimum adhesive cutting. With a special nozzle to improve the precision of the adhesive projection without deviations.
