Splitter: pattern generator for dotted lines to save adhesive

HOW MUCH ADHESIVE DO YOU WANT TO SAVE?

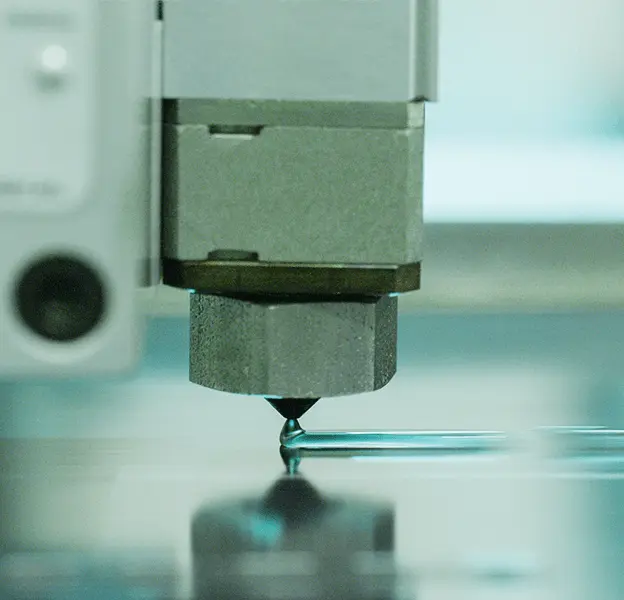

Splitter is a pattern generator that creates intermittent activation signals (24 V) to save adhesive easily.

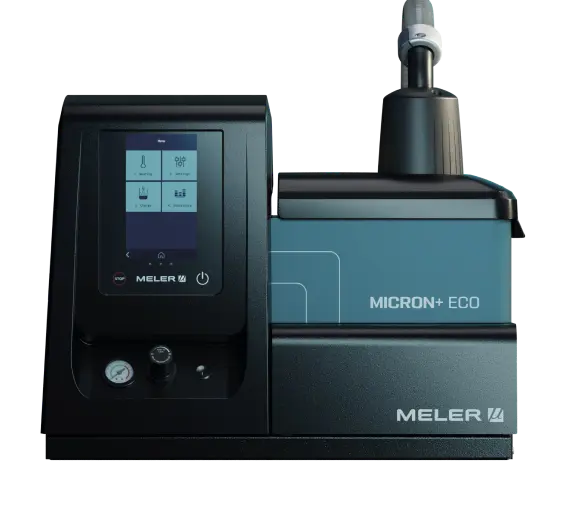

Available in the MICRON+ ECO and MICRON+ range.

EASY PROGRAMMING OF SAVINGS PERCENTAGE

The user sets the desired savings percentage on the integrated MICRON+ touch panel without modifying the customer’s PLC.

Splitter automatically calculates the pattern to achieve the indicated saving.

WORKING MODES

Repetitive saving: Always producing the same product with constant dimensions.

Variable saving: Producing different products with varying dimensions.

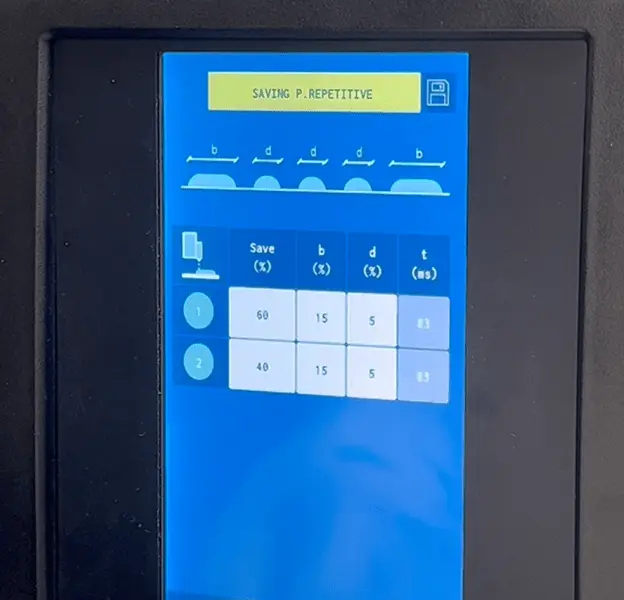

Repetitive saving

Default pattern type: bead/dotted/bead.

Advanced settings allow full pattern customization.

Variable saving

Pattern type: dotted (along the entire length).

Dot size can be customized by adjusting duration (TON).

Benefits that change everything

SIGNAL
24 V
ADHESIVE SAVINGS %
Selection of the desired savings percentage via 7″ touchscreen on the MICRON+ platform
CONFIGURATION
Easy setup and full integration within the MICRON+ platform
ELECTRICAL OUPUTS
2, 4 or 6 electrical outputs
MAXIMUM POWER
Up to 60 W
